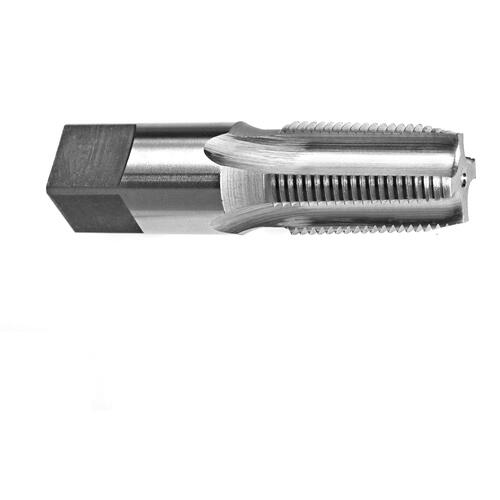

1/8-27 NPT 5FL INT GRD THD TAPER PIPE TAPS 114G
| Tool Type | Pipe Tap | Chamfer | Plug |
| Thread Diameter Size (TDZ) | 1/8″ | Square Size | 0.234″ × 3/8″ |
| Overall Length (OAL) | 2-1/8″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.234″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NPT | Pack Size | 12 |
| Coating | Uncoated | Series/List # | 114G |
| Threads per Inch (TPI) | 27 | Thread Size | 1/8″ - 27 |
| Flute Length | 3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.074
